Merge branch 'master' into dockerfile

.travis.yml

@@ -17,17 +17,6 @@ env:
     - ARTEFACT_BASE=$TRAVIS_BUILD_DIR/artefacts/
     - ARTEFACT_PATH=$ARTEFACT_BASE/$BUILD_NAME

-notifications:
-  irc:
-    channels:
-      - "chat.freenode.net#portapack"
-    template:
-      - "%{repository}#%{build_number} (%{branch} - %{commit} : %{author}): %{message}"
-      - "Change view : %{compare_url}"
-      - "Build details : %{build_url}"
-      # TODO: The "build_number.1" in this URL is almost certainly wrong, but correct value not available from Travis?
-      - "Firmware download : https://jboone.github.io/portapack-havoc-nightly/"
-
 before_install:
   - sudo add-apt-repository ppa:team-gcc-arm-embedded/ppa -y
   - sudo apt-get update -q
@@ -65,9 +54,3 @@ addons:
       - cmake
       - dfu-util

-deploy:
-  provider: script
-  skip-cleanup: true
-  script: bash $TRAVIS_BUILD_DIR/tools/deploy-nightly.sh
-  on:
-    branch: master

README.md

-![HAVOC banner](doc/banner.png)
+## Fork of the unofficial HAVOC

-HAVOC is an **unofficial** fork of the PortaPack H1 firmware, a portability add-on for the [HackRF One software-defined radio](http://greatscottgadgets.com/hackrf/).
+Keeping the latest release files and all features I found, and possible my own features in the future, around here. Check Releases

-Hardware is available at [ShareBrained Technology](http://sharebrained.com/portapack).
+[![paypal](https://www.paypalobjects.com/en_US/i/btn/btn_donateCC_LG.gif)](https://www.paypal.com/cgi-bin/webscr?cmd=_s-xclick&hosted_button_id=CBPQA4HRRPJQ6&source=url)

-It is build on top of [ShareBrained's firmware](https://github.com/sharebrained/portapack-hackrf/), meaning most of the original functionality remains the same.
+I only have this [Portapack H2+HackRF+battery](https://s.click.aliexpress.com/e/_dSMPvNo), so that's the version I'll be using for testing the releases before I post them here. BTW, if you have the same H2 (I know... I know it is a *dirty* clone) you could print my case:

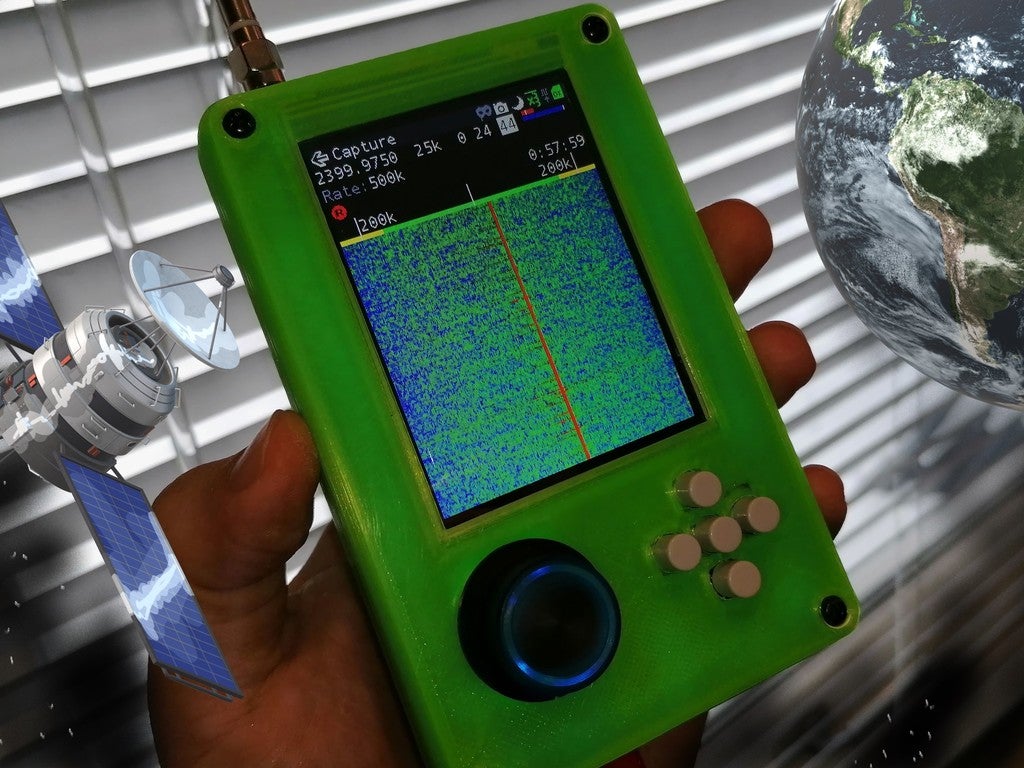

+[![Case](docs/images/h2_front.jpg)](https://www.thingiverse.com/thing:4260973)

-# Documentation & finding help
+<details>
+  <summary>More details about the H2 case</summary>
+
+[STL files](https://www.thingiverse.com/thing:4260973)

-![Helpful note](doc/helpful.png)
+
+</details>

-Please RTFM before asking for help:
-* [Havoc wiki](https://github.com/furrtek/portapack-havoc/wiki)
-* [PortaPack wiki](https://github.com/sharebrained/portapack-hackrf/wiki)
-* [Some questions and answers](https://github.com/furrtek/portapack-havoc/issues)
-* [Facebook group](https://www.facebook.com/groups/177623356165819/) if that's your thing
-* And probably a bunch of posts on a variety of forums...
-
-If you want to submit a bug report, use this page: https://github.com/furrtek/portapack-havoc/issues. Check if it hasn't been already posted, there's a search function. Also check the progress list below. Tickets which aren't related to the firmware itself, or the original HackRF and Portapack H1 will be closed.
-
-# Summary
-
-As its name implies, HAVOC's functions can be fun, mean or even useful sometimes. You probably shouldn't use them. No ! Bad ! Put it down.
-
-**In most countries, radio transmissions are tightly regulated. Transmitting outside of free/public bands without a licence or authorization, even at very low power, is certainly forbidden where you live. Always bear that in mind. You're the ONLY ONE responsible for what you do with this software.**
-
-# Fork features
-
-* IQ file replay
-* Microphone FM transmit with CTCSS
-* CTCSS decoder
-* Frequency manager (save & load from SD card, with categories and notes)
-* File manager
-* "Soundboard" wave file player (put 8-bit mono files in SD card /wav directory)
-* ADS-B receiver with map view
-* ADS-B transmitter (aircraft spoof)
-* SSTV transmitter
-* Fully configurable jammer
-* POCSAG transmitter
-* POCSAG receiver/decoder
-* Morse transmitter (FM tone and CW)
-* OOK transmitter for common remote encoders (PT2262, doorbells, remote outlets, some garage doors, ...)
-* RDS (Radio Data System) PSN, RadioText and Time groups transmitter
-* Meteorological radiosonde receiver (M10, M2K2, ...)
-* AFSK receiver
-* AFSK transmitter (Bell202, ...)
-* Nuoptix DTMF sync transmitter (quite specific but can be useful in some theme parks :) )
-* TouchTunes jukebox universal remote (by Notpike)
-* LCR (Language de Commande Routier) message generator
-* Street lighting control transmitter (CCIR tones)
-* "Play Dead" in case of emergency
-* Fully configurable RF signal generator
-* RSSI audio output as pitch (for direction finding)
-
-# Progress
-
-Feature | Progress | Notes
-------- | -------- | -----

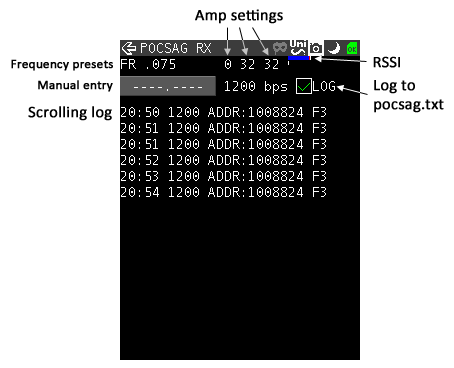

-POCSAG RX   | 95% | Needs support for numeric messages
-Morse TX    | 95% | Needs fox hunt scheduler and live keying mode
-Mic. TX     | 95% | Carrier leak bug, need to find guard tones for various brands of wireless mics
-ADS-B RX    | 90% | Needs angle and speed decoding
-Close-Call™ | 85% | Needs adjustments and optimization for wider frequency range
-ADS-B TX    | 85% | Works but baseband module needs cleaning
-SSTV TX     | 80% | Needs better bitmap file handling, support for other modes (ROBOT ?) and callsign FSK ID
-Radiosondes | 75% | Needs support for other models
-Wave visualizer | 70% | Needs cleaning and handling of other sample formats, high priority
-AFSK RX     | 70% | Needs work regarding flexibility
-Sigfox RX   | 40% | Tuning basics done, needs decoding code and testing
-Generic TXs | 30% | Raw AX.25, AFSK, FSK, CCIR, DTMF... Tonesets are ready
-CC1101 TRX  | 10% | And other sub-GHz transceiver chips like SI4032...
-SSTV RX     | 0%  |
-Scanner     | 0%  | Easy, could be used with POCSAG RX to catch jumping channels
-SSB TX      | 0%  | Requested but math is hard :(
-OOK RX      | 0%  | See if rtl_433's author is fine with using protocol defs
-Analog TV TX| 0%  | Enough CPU ? B&W and no sound ?
-LoJack RX   | 0%  | Basically AFSK RX
-DMR info RX | 0%  | Retrieve DMR channel info. **No voice** because of vocoder complexity and possible legal issue
-Tetra info? | 0%  | Same
-
-# Screenshots
-

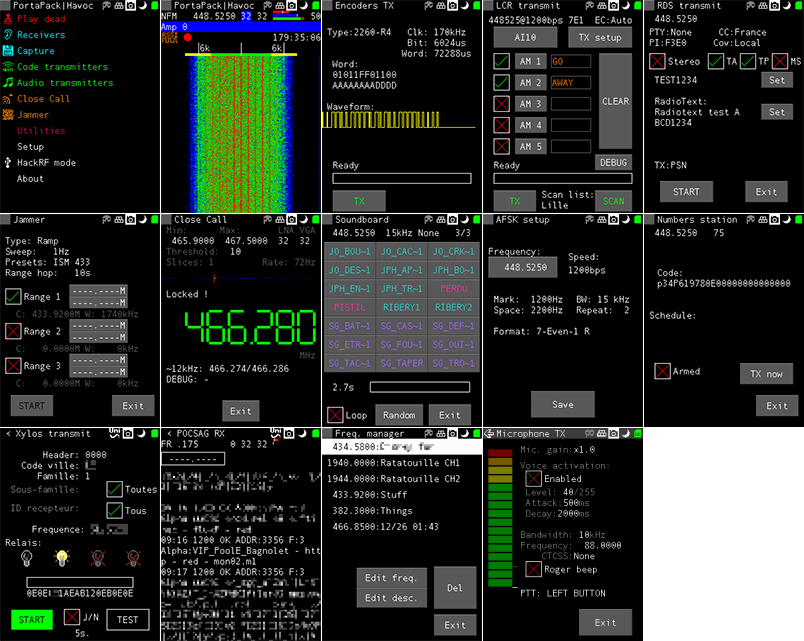

-![HAVOC screenshots](doc/screenshots.png)
-
-# Thanks
-
-* Sig and cLx for research on AFSK LCR, Xylos, and for lending remote-controlled outlets
-* Pyr3x, Rainer Matla and DC1RDB for the donations :)
-* Keld Norman and Giorgio Campiotti for ideas and suggestions
-* In general, people who help making it better instead of asking already answered questions
-
-# License
-
-Except where specified in subdirectories of this project, all work is offered under the following license:
-
-Copyright (C) 2013-2019 Jared Boone, ShareBrained Technology, Inc.
-
-Copyright (C) 2015-2016 Furrtek
-
-This program is free software; you can redistribute it and/or
-modify it under the terms of the GNU General Public License
-as published by the Free Software Foundation; either version 2
-of the License, or (at your option) any later version.
-
-This program is distributed in the hope that it will be useful,
-but WITHOUT ANY WARRANTY; without even the implied warranty of
-MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
-GNU General Public License for more details.
-
-You should have received a copy of the GNU General Public License
-along with this program; if not, write to the Free Software
-Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA
-02110-1301, USA.
-
-# Contact
-
-## Original firmware and hardware
-
-Jared Boone <jared@sharebrained.com>
-
-ShareBrained Technology, Inc.
-
-<http://www.sharebrained.com/>
-
-The latest version of this repository can be found at
-https://github.com/sharebrained/portapack-hackrf/
-
-## HAVOC specific things
-
-Warning: won't reply to questions about flashing and compiling. See links above.
-
-Furrtek <furrtek@gmail.com>
-
-<http://www.furrtek.org>
+<details>
+  <summary>Printed magnetic cover for the H2 case</summary>
+

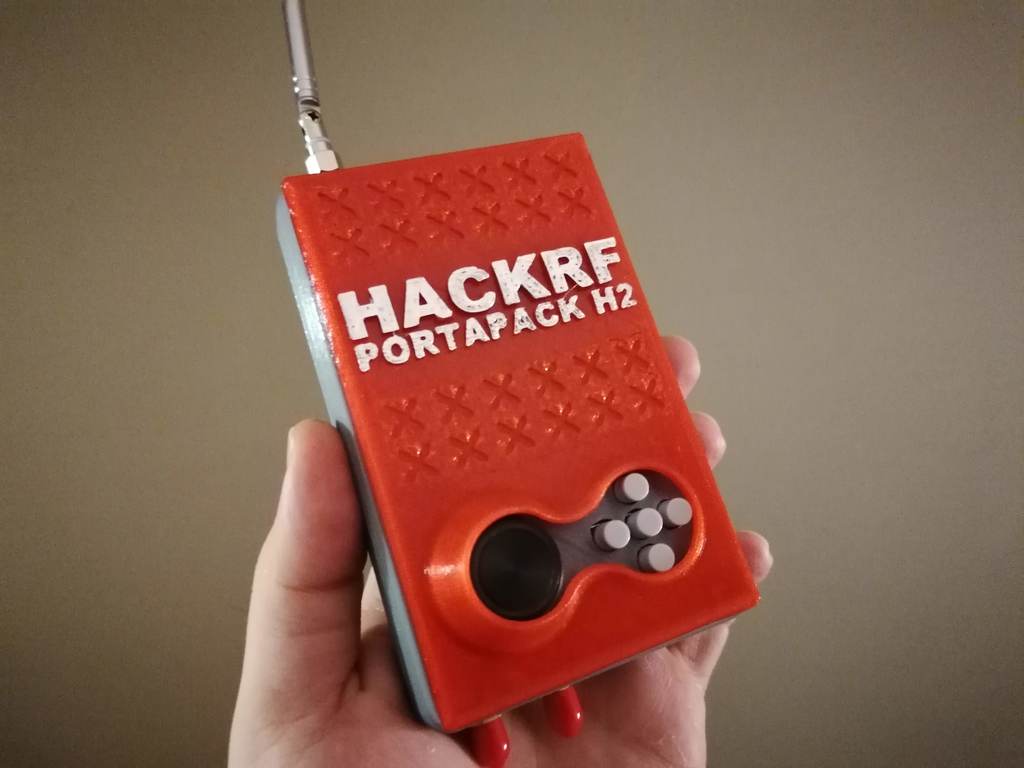

+[![Cover](docs/images/h2_cover.jpg)](https://www.thingiverse.com/thing:4278961)
+
+[STL files](https://www.thingiverse.com/thing:4278961)
+
+</details>

doc/widgets.txt

-~ Pretty ugly PortaPack H1 (+HAVOC) UI widget documentation ~
-              by @furrtek - v0.1 - 2017/02/02
-           Not approved at all by @Sharebrained
-
-The display is 240 x 320 pixels.
-
-A View is basically a rectangular zone on the screen.
-Widgets (aka controls, UI elements...) go into Views.
-
-Views can be pushed to/popped from a stack.

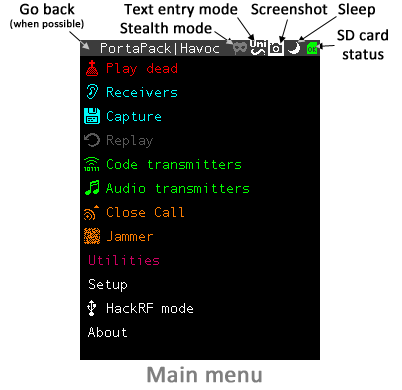

-The main menu view is at the bottom of the stack and can't be popped.
-The title bar view is a special case, it (normally) can't be hidden by pushed Views.
-Since the title bar is 16 pixel high, a regular full-screen view is 240 x 304 pixels.
-
-If the current View can be popped (removed), an arrow shows on the left of the title bar.
-
-Kind of widgets:
-
-==== Rectangle ====
-
-A simple filled or outlined rectangle. No interactivity.
-
-Constructors:
-- Empty
-- Rectangle(Rect, Color)
-
-Methods:
-- set_color(Color)
-- set_outline(bool): Default is filled, set to true for outline only
-
-==== Text ====
-
-A simple text label. No interactivity.
-
-Constructors:
-- Empty
-- Text(Rect)
-- Text(Rect, std::string)
-
-Methods:
-- set(std::string): Updates text
-
-==== BigFrequency (HAVOC) ====
-
-Displays a big 7-segment style frequency value in the XXXX.xxxMHz format.
-If the value is 0, ----.--- is displayed. No leading zeros. No interactivity.
-
-Constructors:
-- BigFrequency(Rect, rf::Frequency)
-
-Methods:
-- set(rf::Frequency): Updates value
-
-==== ProgressBar (HAVOC) ====
-
-Displays progress as an horizontal progress bar with value and maximum value.
-No interactivity.
-
-Constructors:
-- ProgressBar(Rect)
-
-Methods:
-- set_max(uint32_t): Updates maximum value
-- set_value(uint32_t): Updates current value
-
-The maximum value is set by default to 100.
-
-==== Console ====
-
-Displays a scrolling text console. No interactivity.
-
-Constructors:
-- Console(Rect)
-
-Methods:
-- clear(): Clears text and resets cursor to top-left
-- write(std::string): Adds text
-- writeln(std::string): Adds text and CR + LF
-
-==== Checkbox (HAVOC) ====
-
-A toggle option shown as a tickable box with a text label.
-Interactive: select and touch.
-
-Constructors:
-- Empty
-- Checkbox(Point, size_t, std::string)
-- Checkbox(Point, size_t, std::string, bool)
-
-(Position, length of text label, text, regular size/small)
-
-Methods:
-- bool value(): Returns state
-- set_text(std::string): Updates text label
-- set_value(bool): Sets state
-
-Callbacks:
-- on_select: Select key press or touch. Returns state
-
-==== Button ====
-
-A momentary push-button. Interactive: select and touch.
-
-Constructors:
-- Empty
-- Button(Rect, std::string)
-
-Methods:
-- std::string text(): Returns text
-- set_text(std::string): Updates text
-
-Callbacks:
-- on_select: Select key press or touch
-- on_dir: Direction keys press
-- on_highlight: Focus get
-
-==== Image ====
-
-Shows a 1-bit bitmap. No interactivity.
-
-Constructors:
-- Empty
-- Image(Rect, Bitmap*, Color, Color)
-
-(Rect, pointer to bitmap (see bitmap.hpp), foreground, background)
-
-Methods:
-- set_bitmap(Bitmap*): Updates bitmap
-- set_foreground(Color): Changes foreground color
-- set_background(Color): Changes background color
-- invert_colors(): Flip foreground color with background
-
-==== ImageButton ====
-
-Same as the Image widget, except interactive (select and touch). No methods.
-
-Constructors:
-- Empty
-- ImageButton(Rect, Bitmap*, Color, Color)
-
-(Rect, pointer to bitmap (see bitmap.hpp), foreground, background)
-
-Callbacks:
-- on_select: Select key press or touch
-
-==== ImageOptionsField (HAVOC) ====
-
-Options list displayed as images.
-Interactive: change (jog wheel) and focus.
-
-Constructors:
-- Empty
-- ImageOptionsField(Rect, options_t)
-
-options_t is a std::vector of std::pair of unsigned char pointers to color bitmap data and an int32_t
-
-Methods:
-- set_options(options_t)
-- size_t selected_index()
-- size_t selected_index_value()
-- set_selected_index(size_t)
-- set_by_value(value_t)
-
-Callbacks:
-- on_change: Option was changed
-- on_show_options: Focus get
-
-==== OptionsField ====
-==== NumberField ====
-==== SymField (HAVOC) ====
-==== Waveform (HAVOC) ====

dockerfile-nogit

-FROM ubuntu:latest
-
-# Set location to download ARM toolkit from.
-# This will need to be changed over time or replaced with a static link to the latest release.
-ENV ARMBINURL=https://developer.arm.com/-/media/Files/downloads/gnu-rm/9-2019q4/gcc-arm-none-eabi-9-2019-q4-major-x86_64-linux.tar.bz2?revision=108bd959-44bd-4619-9c19-26187abf5225&la=en&hash=E788CE92E5DFD64B2A8C246BBA91A249CB8E2D2D \
-	PATH=$HOME/bin:$PATH:/opt/build/armbin/bin
-
-#Create volume /havoc/bin for compiled firmware binaries
-VOLUME /havoc
-WORKDIR /havoc/firmware
-
-# Fetch dependencies from APT
-RUN apt-get update && \
-	apt-get install -y git tar wget dfu-util cmake python3 python-pip ccache && \
-	apt-get -qy autoremove
-
-RUN pip install pyyaml
-
-# Grab the GNU ARM toolchain from arm.com
-# Then extract contents to /opt/build/armbin/
-RUN mkdir /opt/build && cd /opt/build && \
-	wget -O gcc-arm-none-eabi $ARMBINURL && \
-	mkdir armbin && \
-	tar --strip=1 -xjvf gcc-arm-none-eabi -C armbin
-
-# Configure CCACHE
-RUN mkdir ~/bin && cd ~/bin && \
-	for tool in gcc g++ cpp c++;do ln -s $(which ccache) arm-none-eabi-$tool;done
-
-CMD cd .. && cd build && \
+FROM ubuntu:latest
+
+# Set location to download ARM toolkit from.
+# This will need to be changed over time or replaced with a static link to the latest release.
+ENV ARMBINURL=https://developer.arm.com/-/media/Files/downloads/gnu-rm/9-2019q4/gcc-arm-none-eabi-9-2019-q4-major-x86_64-linux.tar.bz2?revision=108bd959-44bd-4619-9c19-26187abf5225&la=en&hash=E788CE92E5DFD64B2A8C246BBA91A249CB8E2D2D \
+	PATH=$HOME/bin:$PATH:/opt/build/armbin/bin
+
+#Create volume /havoc/bin for compiled firmware binaries
+VOLUME /havoc
+WORKDIR /havoc/firmware
+
+# Fetch dependencies from APT
+RUN apt-get update && \
+	apt-get install -y git tar wget dfu-util cmake python3 python-pip ccache && \
+	apt-get -qy autoremove
+
+RUN pip install pyyaml
+
+# Grab the GNU ARM toolchain from arm.com
+# Then extract contents to /opt/build/armbin/
+RUN mkdir /opt/build && cd /opt/build && \
+	wget -O gcc-arm-none-eabi $ARMBINURL && \
+	mkdir armbin && \
+	tar --strip=1 -xjvf gcc-arm-none-eabi -C armbin
+
+# Configure CCACHE
+RUN mkdir ~/bin && cd ~/bin && \
+	for tool in gcc g++ cpp c++;do ln -s $(which ccache) arm-none-eabi-$tool;done
+
+CMD cd .. && cd build && \
     cmake .. && make firmware
\ No newline at end of file

docs/CNAME

+portapack.ried.cl
\ No newline at end of file
